Drake L-4B Linear Amplifier
Drake L-4B - Linear Amplifier

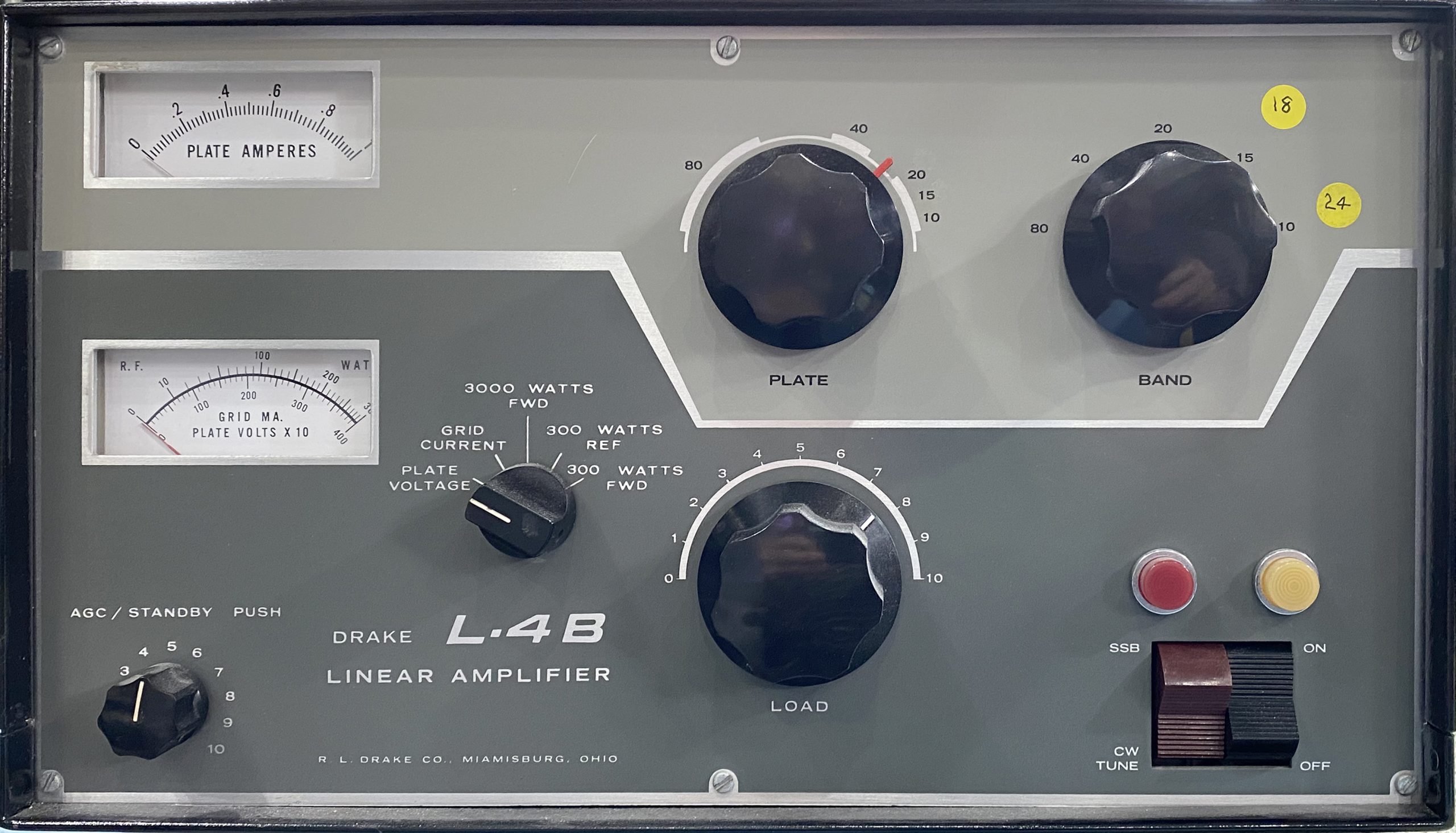

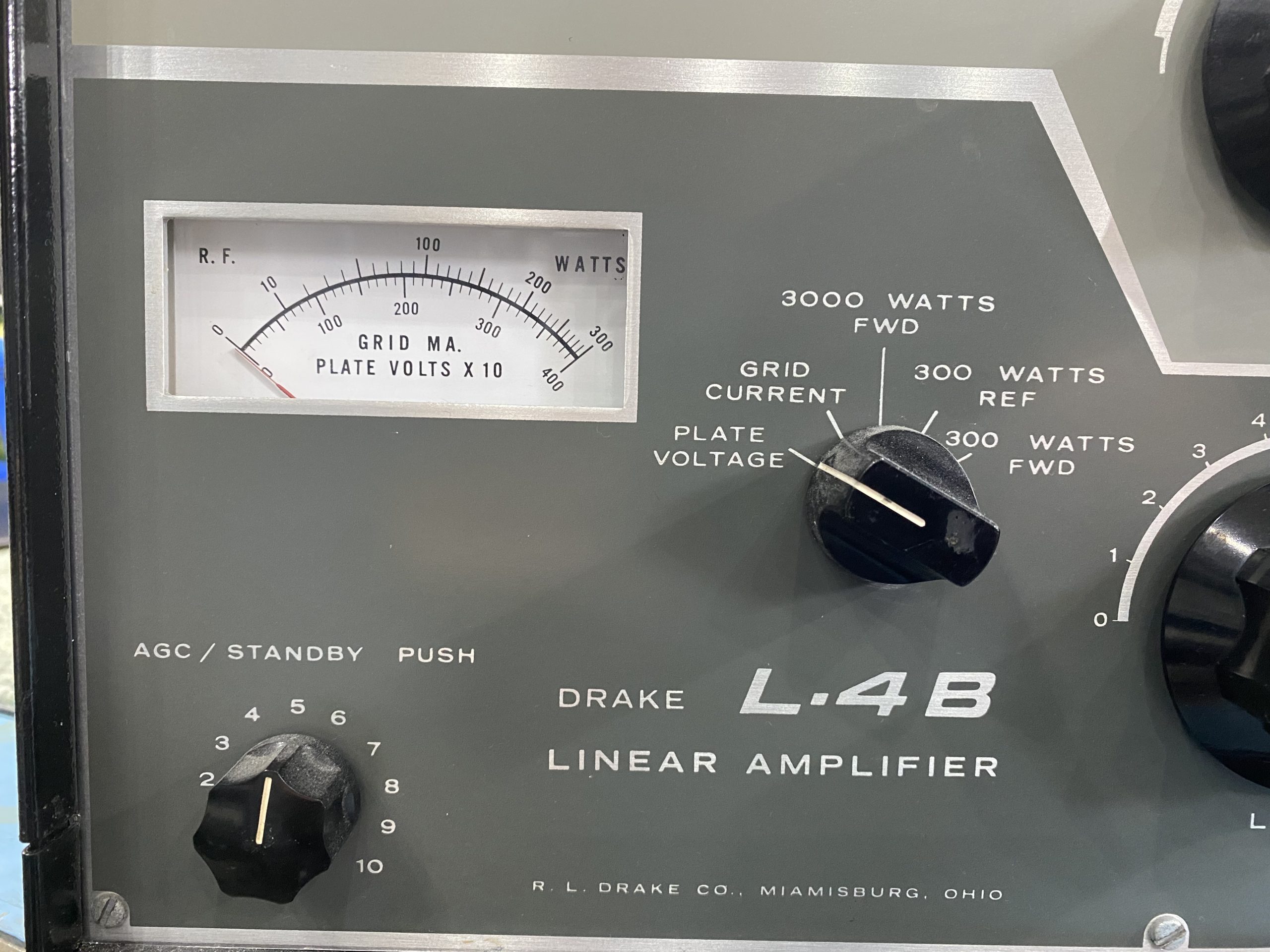

The Drake L-4B Linear Amplifier's, Front Panel Meter, Meter Switch and AGC/Standby Control.
Drake L-4B - Linear Amplifier

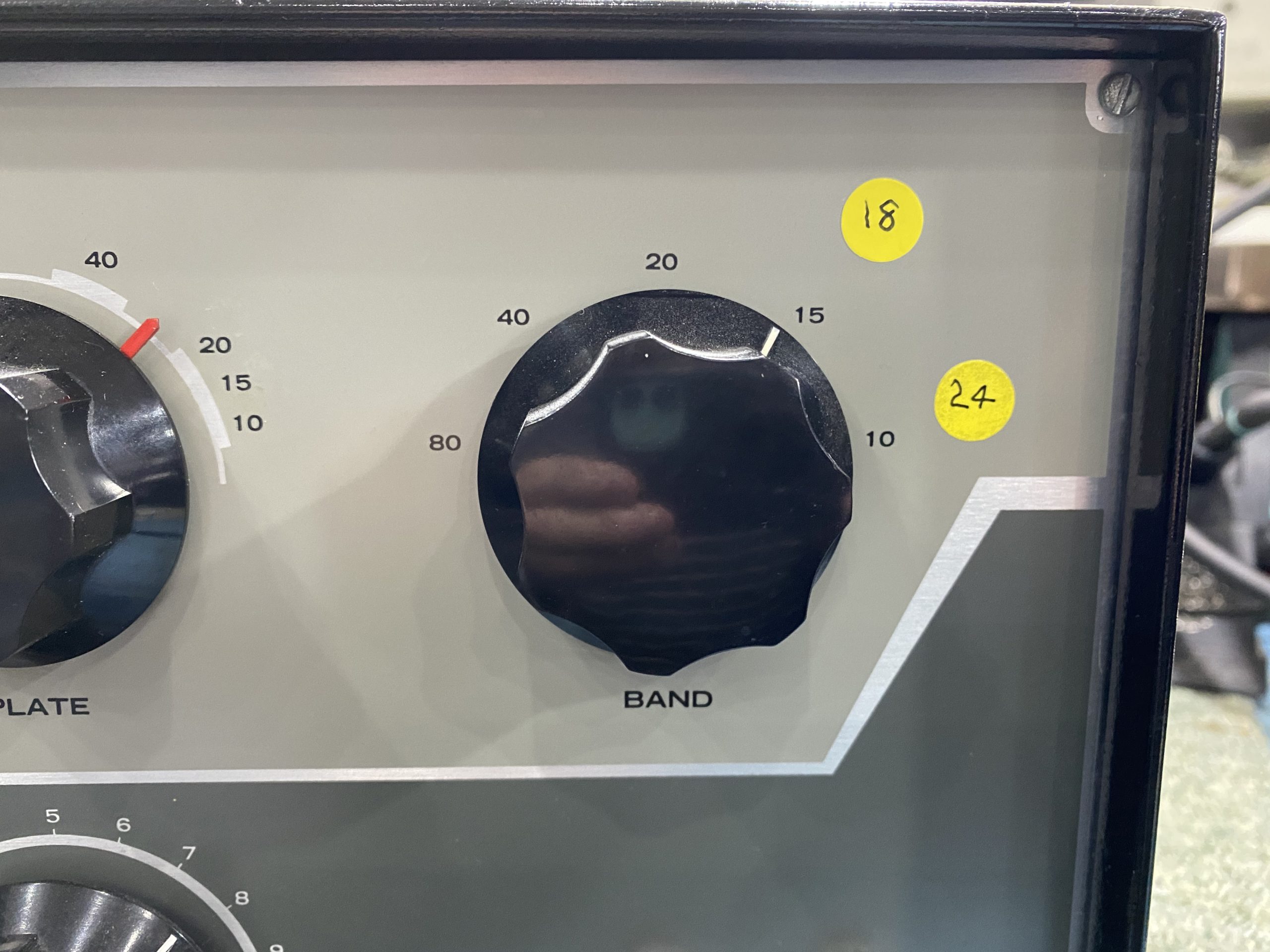

The Drake L-4B Linear Amplifier Band Selector.

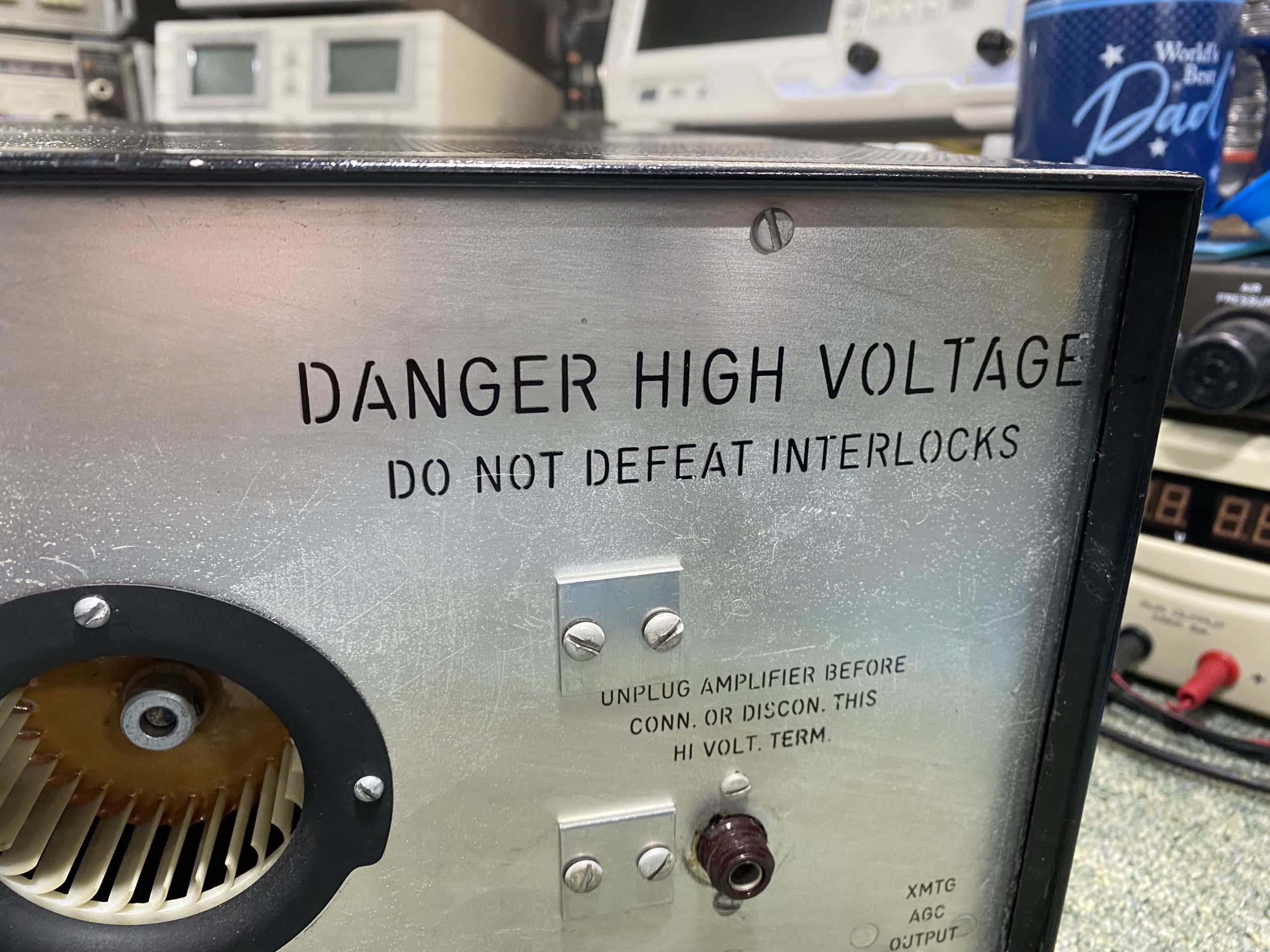

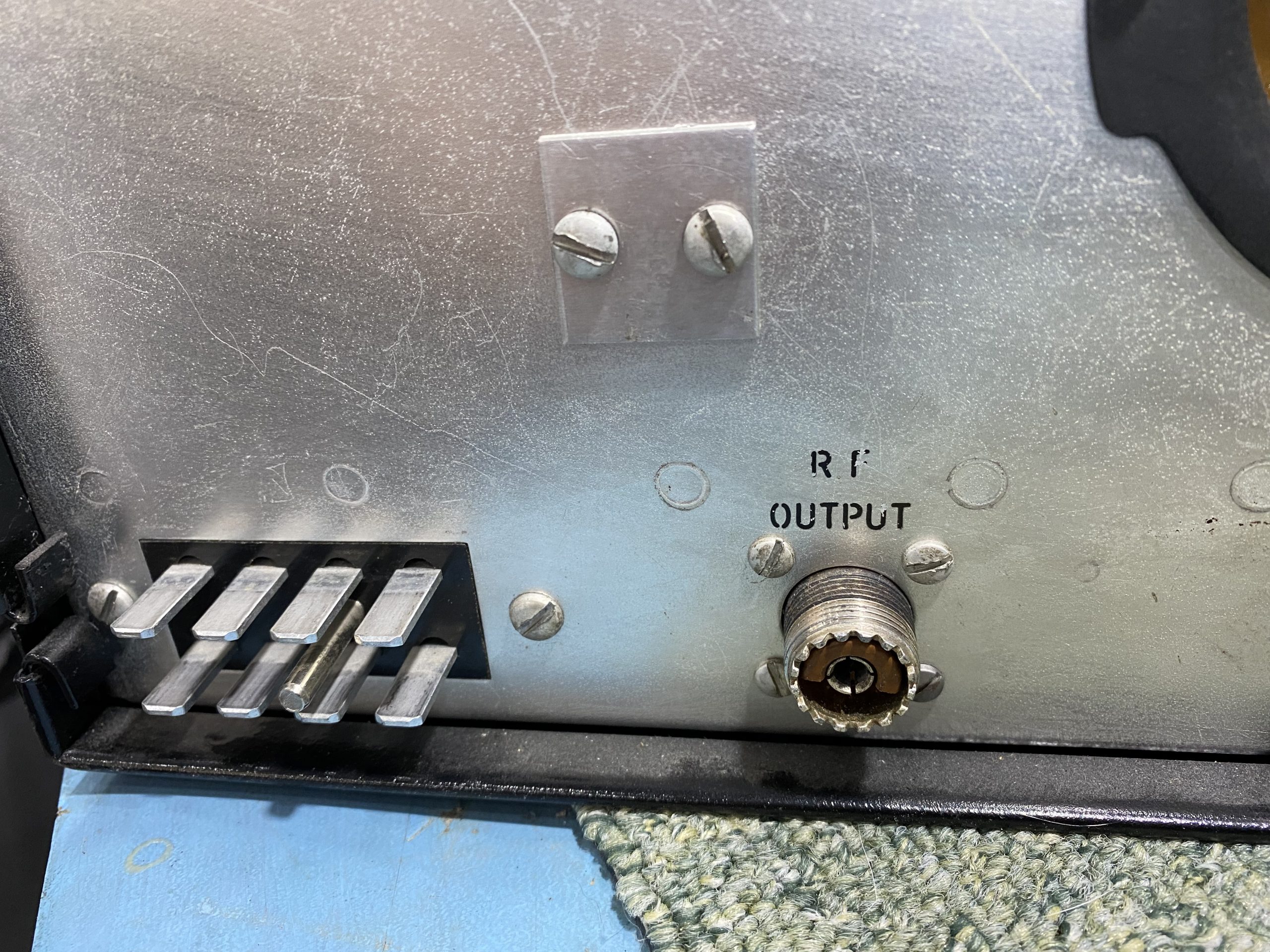

Drake L-4B - Linear Amplifier
The Main Power Supply Connection for the Drake L-4PS, and the RF Input Connection.
Drake L-4B - Linear Amplifier

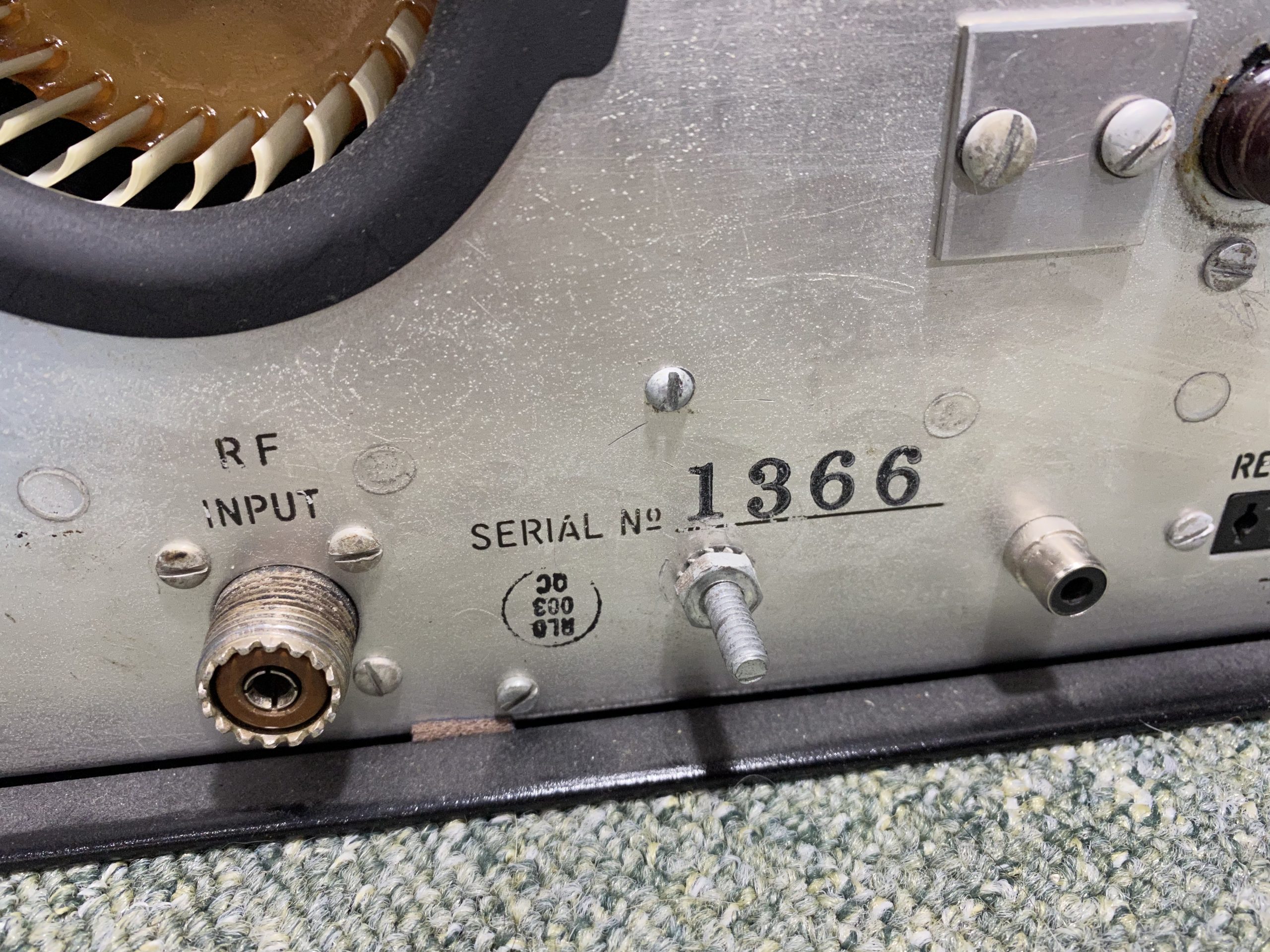

Next to the RF Input we can see the Serial Number just above the earth post.

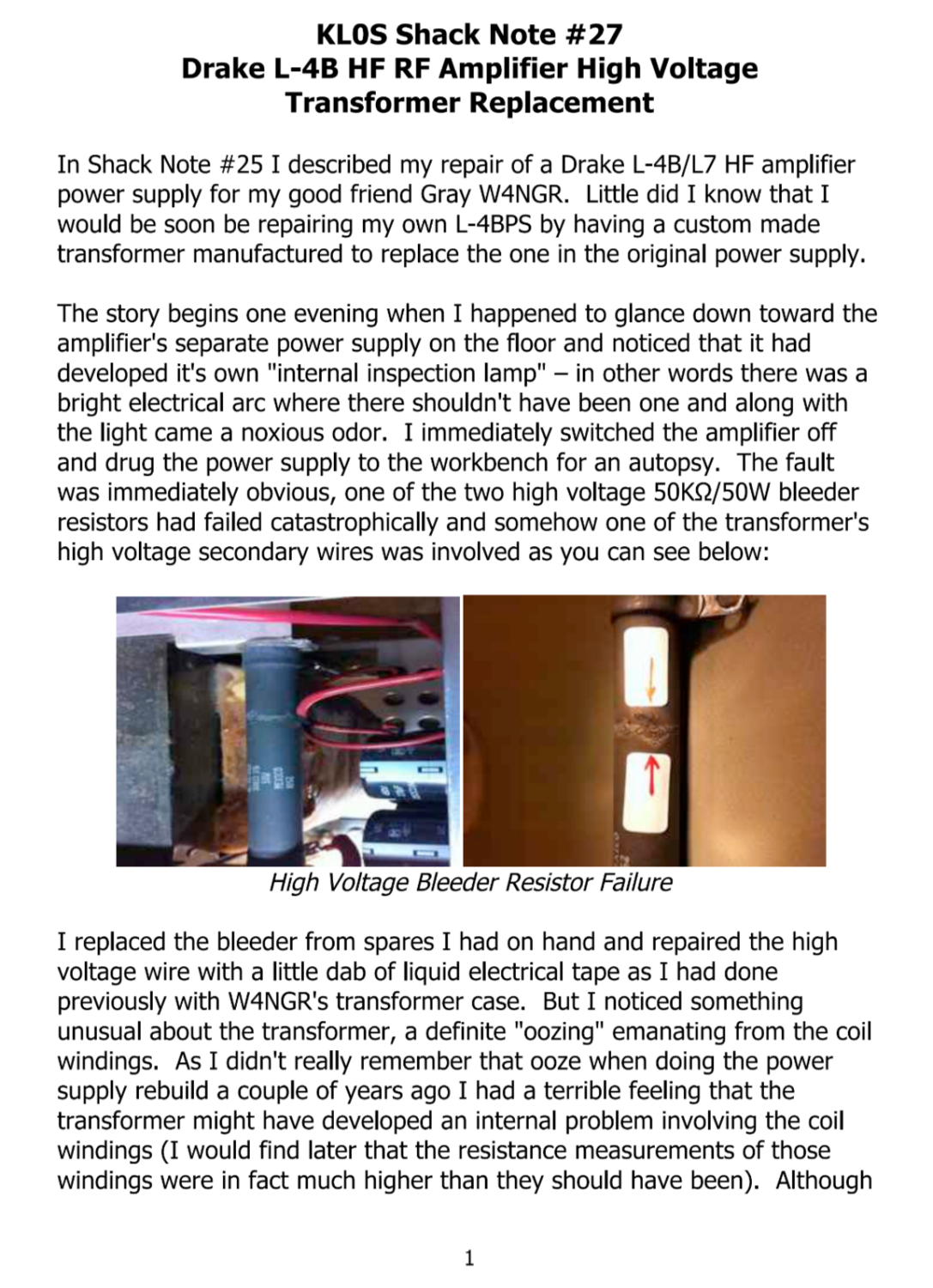

Drake L-4B Linear Amplifier – HF RF Amplifier High Voltage Transformer Replacement
7 Pages. …
197.96 KB 6 downloads
Drake L-4B – Linear Amplifier – High Voltage Transformer Replacement (By KL0S)
7 Pages. …
197.96 KB 0 downloads

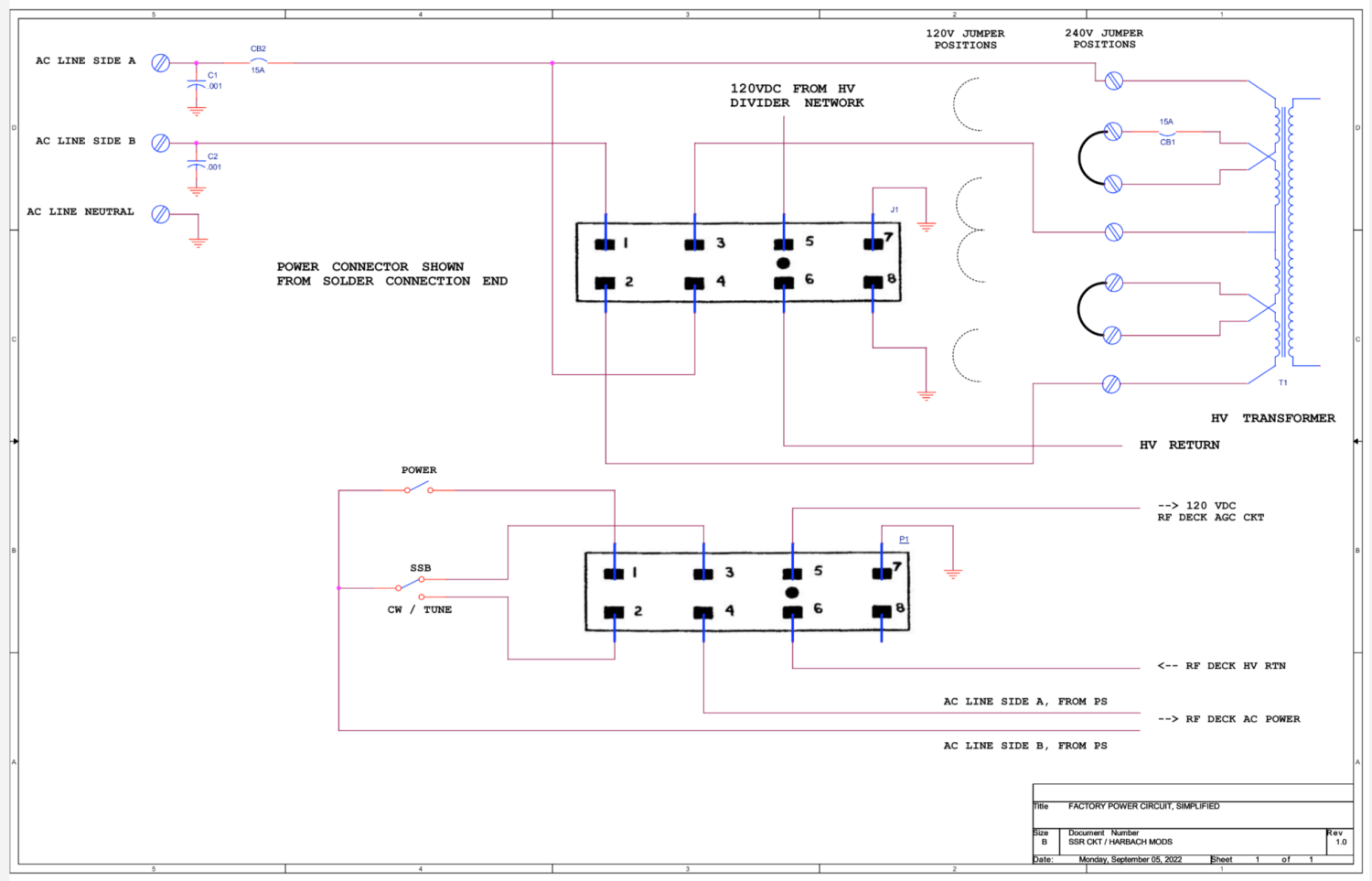

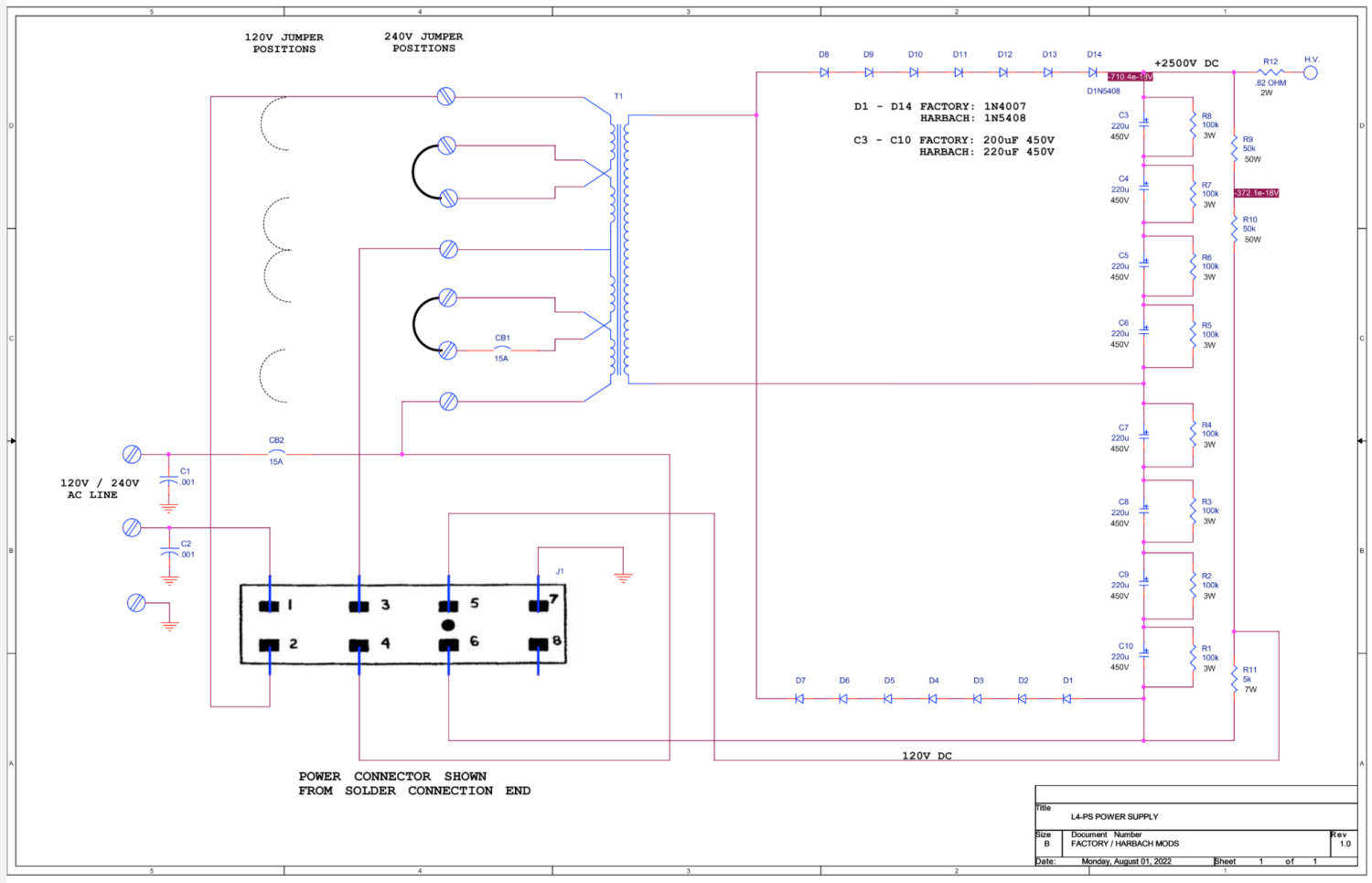

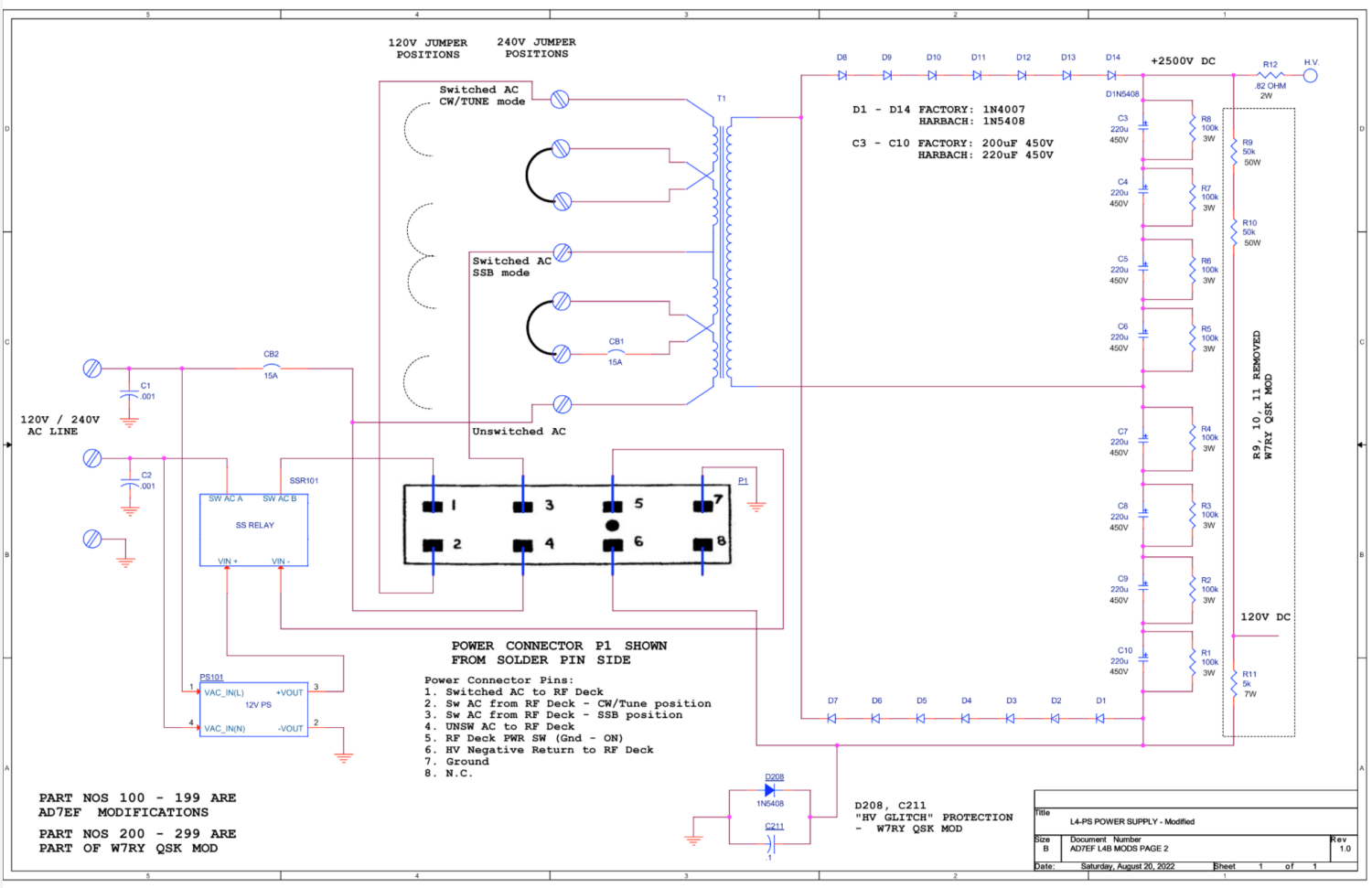

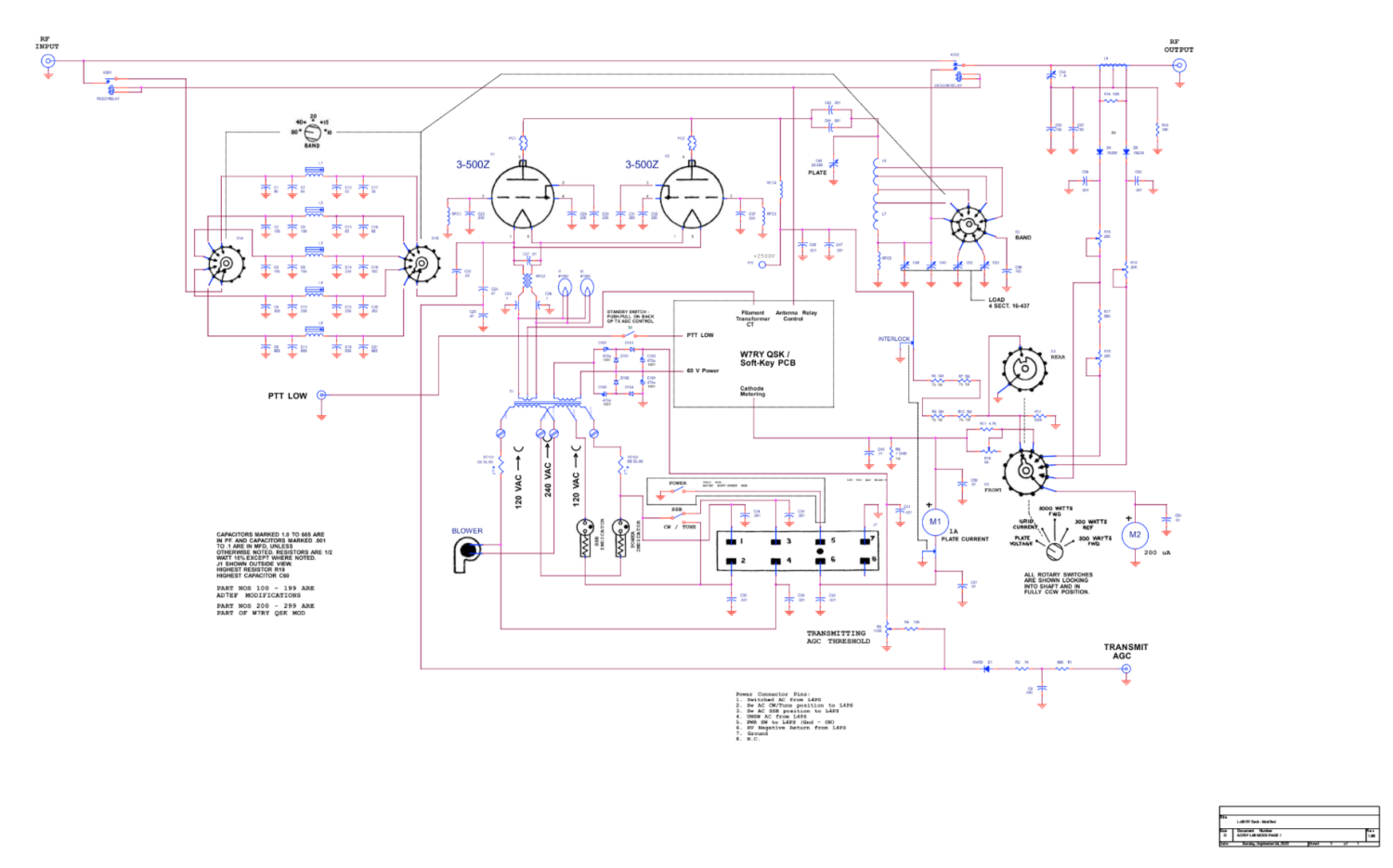

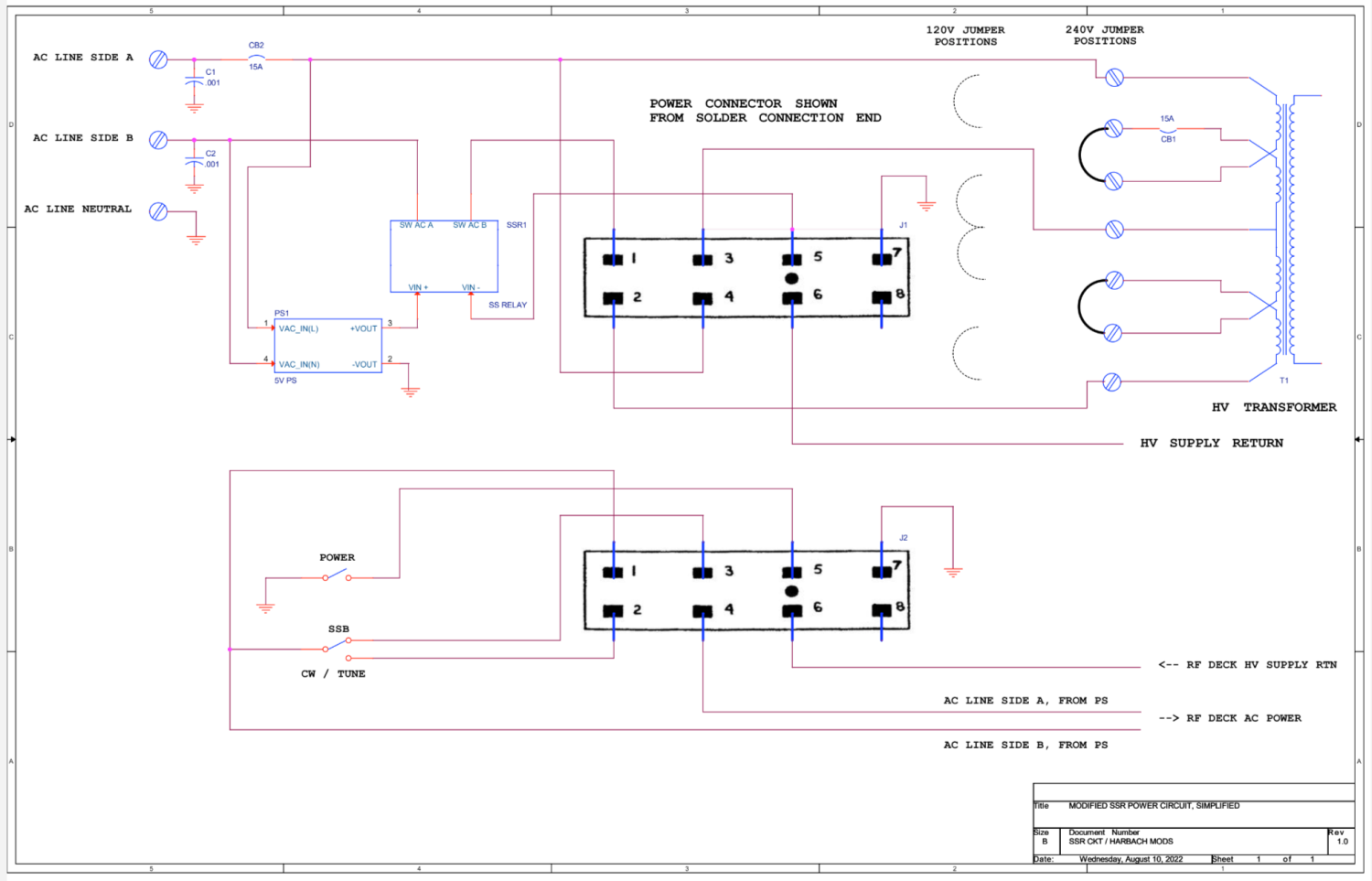

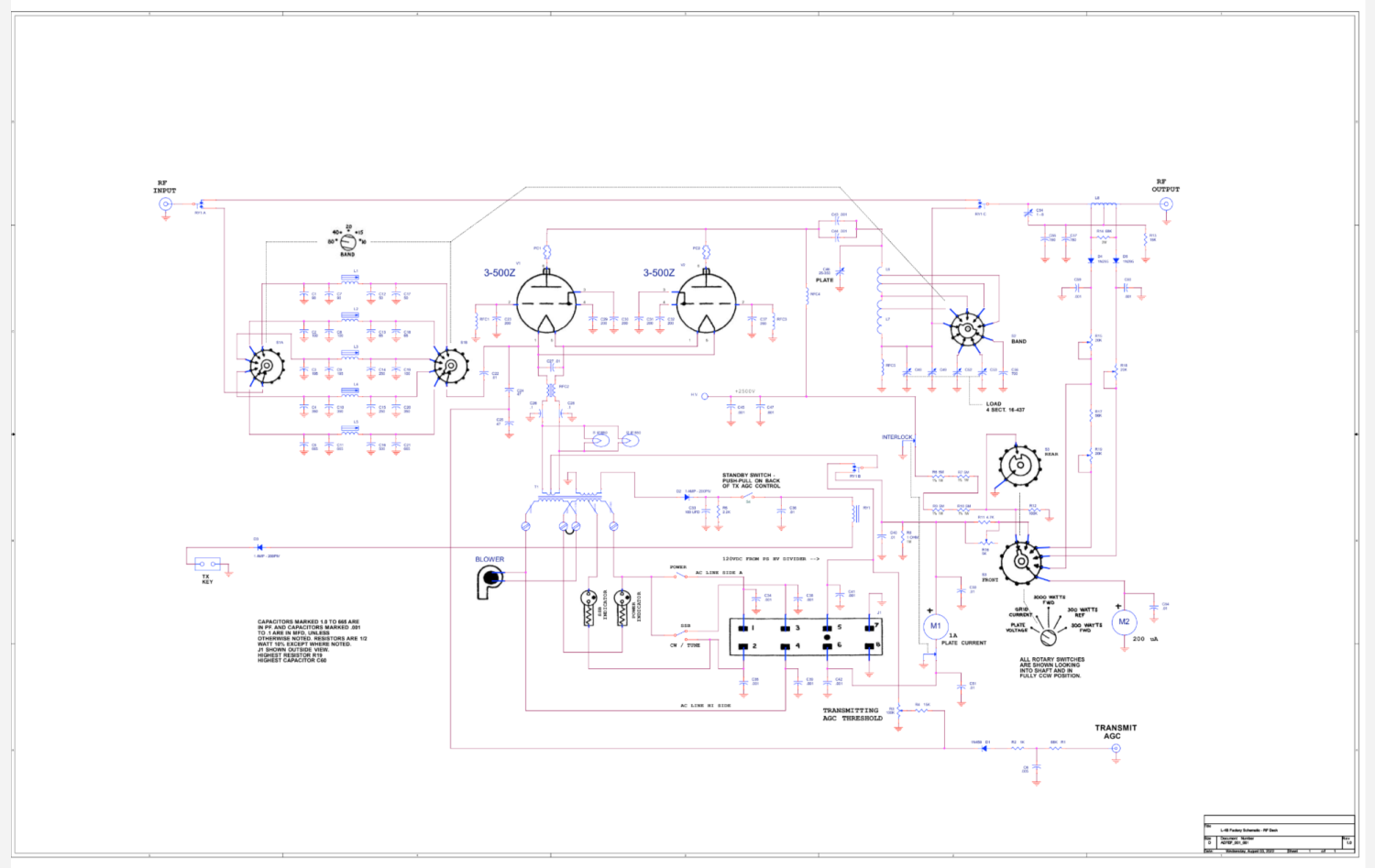

Drake L-4B – Linear Amplifier – Simplified Power Wiring – AD7EF SSR Mod
1 Page. …
168.74 KB 0 downloads
