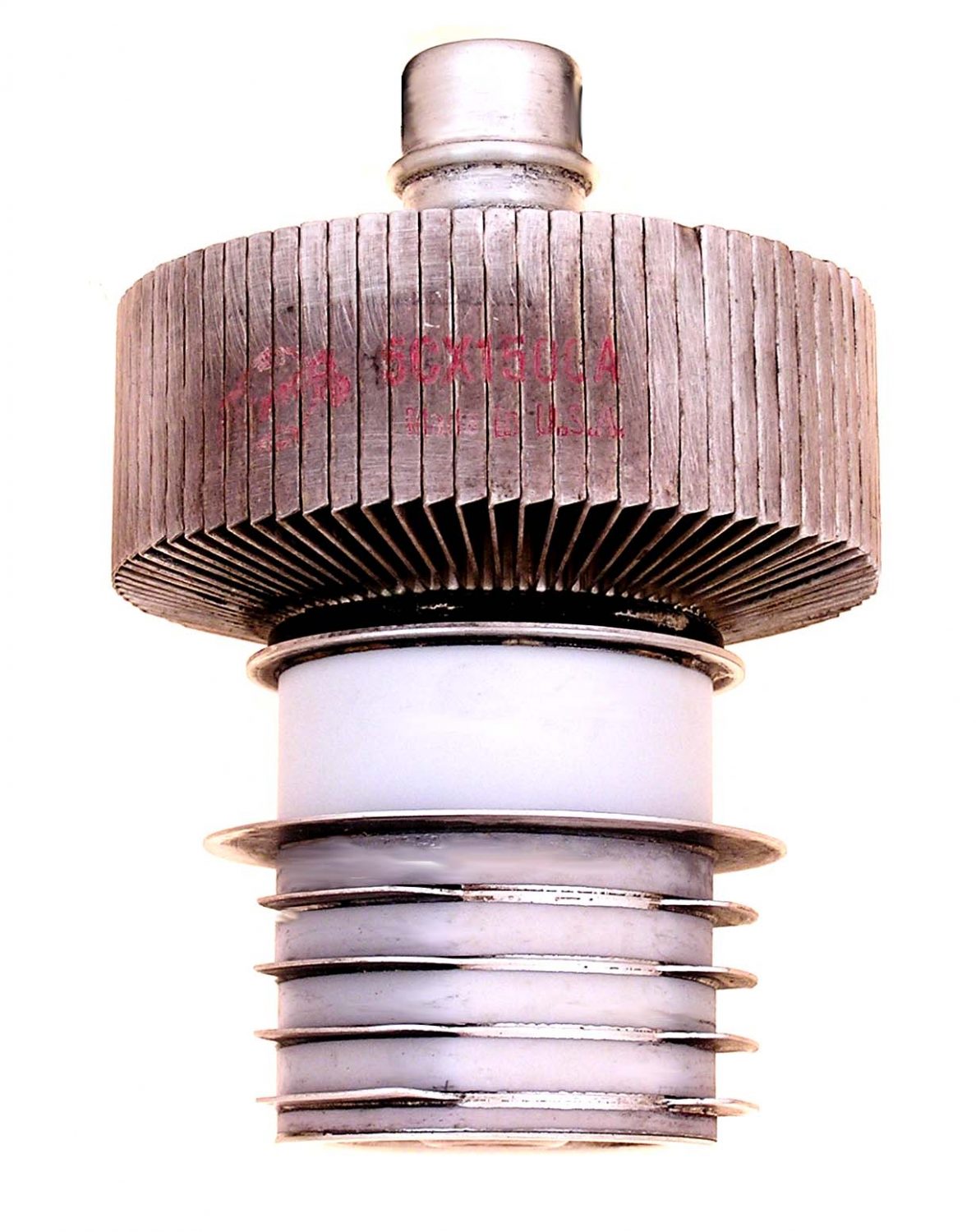

5CX1500A

Quantity in Stock

15

Location

Box 5.1 and 5.2

Ceramic/Metal power pentode designed for use as a Class AB1 linear amplifier in audio or radio frequency applications.

Its characteristic low intermodulation distortion makes it especially suitable for single sideband service.

The filament is a rugged mesh type.

The tube is also recommended for use as a Class C RF power amplifier in CW, FM and AM service.

SK-840
Base

5CX1500A Schematic Symbol
5CX1500A Pinouts

Specifications

Vf : 5.0v
If : 38.5A
Plate Voltage : 5000v
Screen Voltage : 750v
Plate Dissipation : 1500W

Datasheets

5cx1500A CPI Datasheet

5cx1500A CPI Datasheet

Icon
90.01 KB 7 downloads

5cx1500A Eimac Datasheet

5cx1500A Eimac Datasheet

Icon
365.45 KB 8 downloads

5cx1500A Penta Datasheet

5cx1500A Penta Datasheet

Icon
9.98 MB 8 downloads

5cx1500A Svetlana Datasheet

5cx1500A Svetlana Datasheet

Icon
65.82 KB 7 downloads

Thanks to the Valve Museum for the information collected here.
