EBF80

by MD0MDI
EBF80 Valve

Quantity in Stock

11

Location

Box E.1

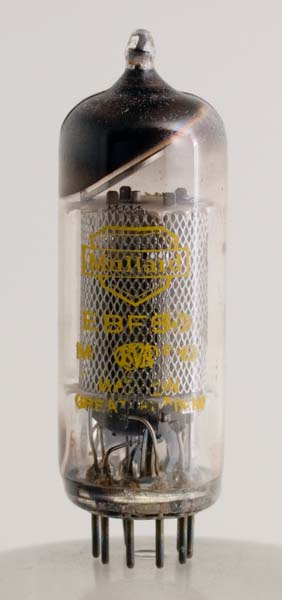

The EBF80 is a variable μ amplifier pentode and a pair of signal diodes in the one envelope.

Probably this was designed as the later EBF89 as final IF amplifier and AM detector.

The other diode would provide AGC rectification.

The thin glass tube envelope is 20 mm in diameter and, excluding the B9A base pins, is 58 mm tall.

References: Datasheet, 3002 & 1040. Type EBF80 was first introduced in 1950.

B9A Noval
EFB80 Pinouts
6JB6A Pinout

Pin 1: Grid Number 2
Pin 2: Grid Number 1
Pin 3: Cathode, Internal Shield
Pin 4: Heater
Pin 5: Heater
Pin 6: Anode
Pin 7: Anode (d1)
Pin 8: Anode (d2)
Pin 9: Grid Number 3

Specifications

Vf : 6.3v
If : 300mA
Va : 250v
mAa : 9mA
Cak : 4.9pF
Cga : 0.025pF
Cgk : 4.9pF
Vg2 : 85v
Vg1 : -2.0v
Ia : 5.0mA
Ig2 : 1.75mA
Ra : 1.5MΩ
S : 2.2mA/v

Substitutes

6N8
WD709
ZD152

Datasheets

EBF80 Mazda Datasheet

EBF80 Mazda Datasheet

Icon
445.02 KB 10 downloads

EBF80 Philips Datasheet 1

EBF80 Philips Datasheet 1

Icon
264.86 KB 16 downloads

EBF80 Philips Datasheet 2

EBF80 Philips Datasheet 2

Icon
86.13 KB 10 downloads

EBF80 Unknown Origin Datasheet 1

EBF80 Unknown Origin Datasheet 1

Icon
61.66 KB 7 downloads

EBF80 Unknown Origin Datasheet 2

EBF80 Unknown Origin Datasheet 2

Icon
14.49 KB 22 downloads

EBF80 Unknown Origin Datasheet 3

EBF80 Unknown Origin Datasheet 3

Icon
425.36 KB 6 downloads

EBF80 Unknown Origin Datasheet 4

EBF80 Unknown Origin Datasheet 4

Icon
133.45 KB 9 downloads

Thanks to the Valve Museum for the information collected here.
